Description

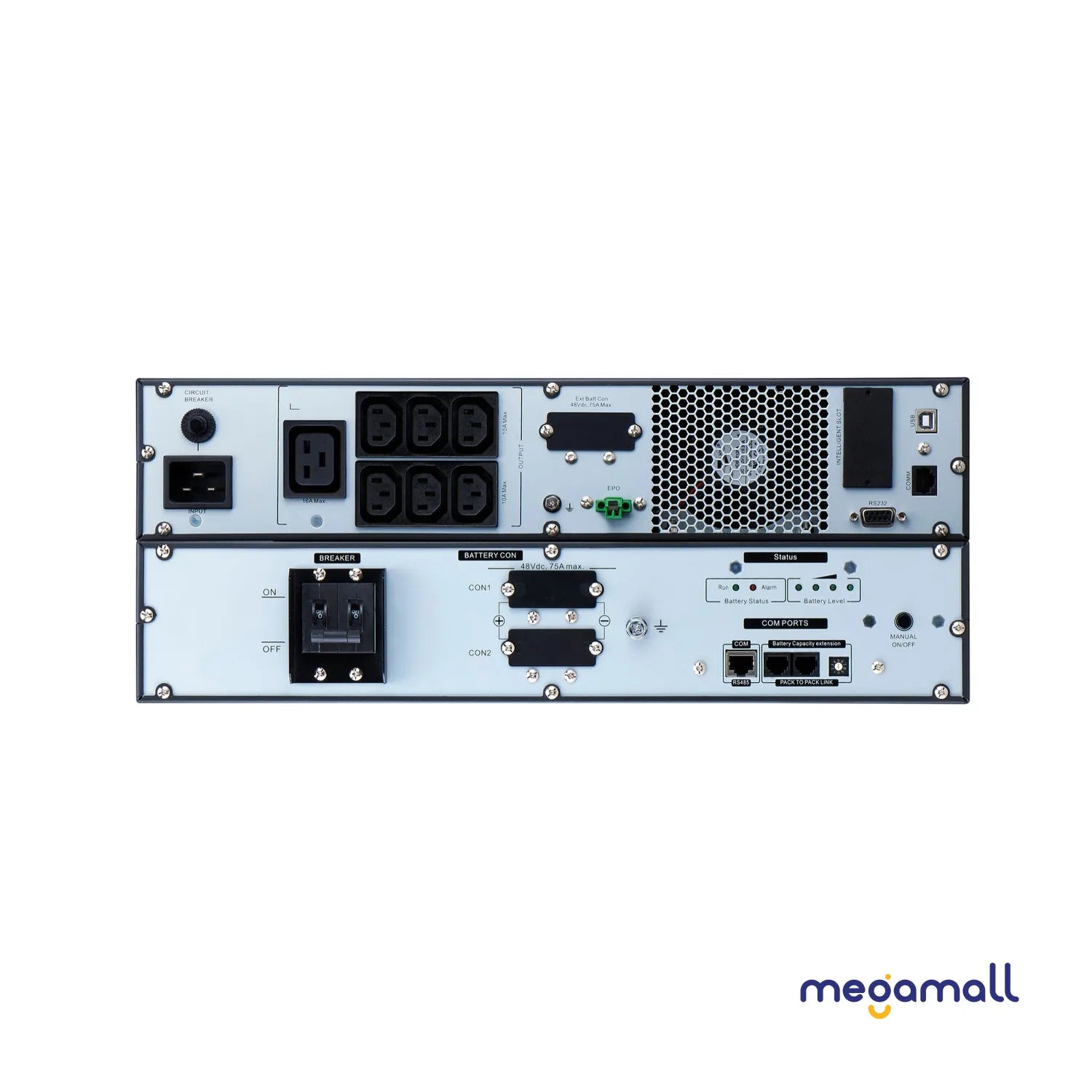

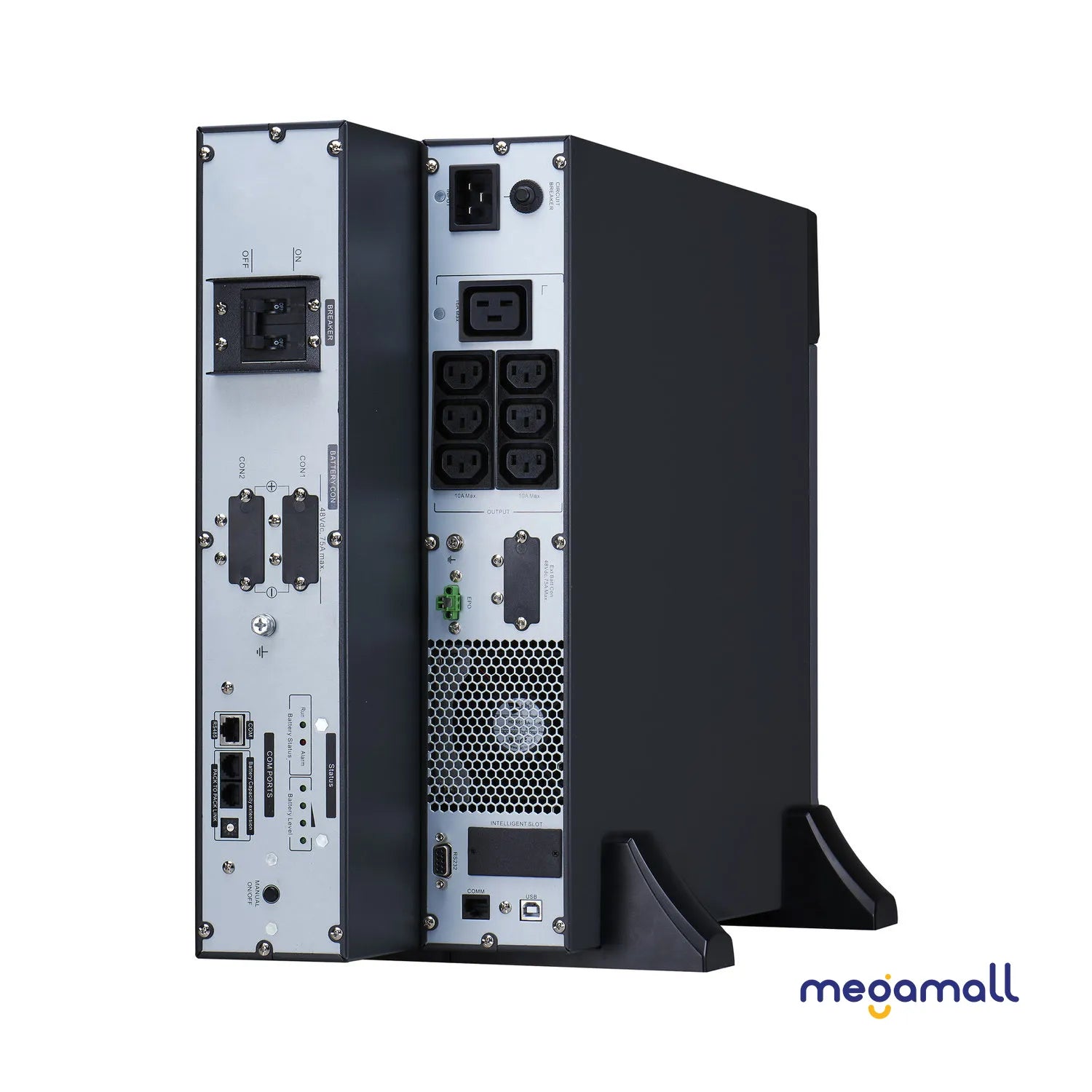

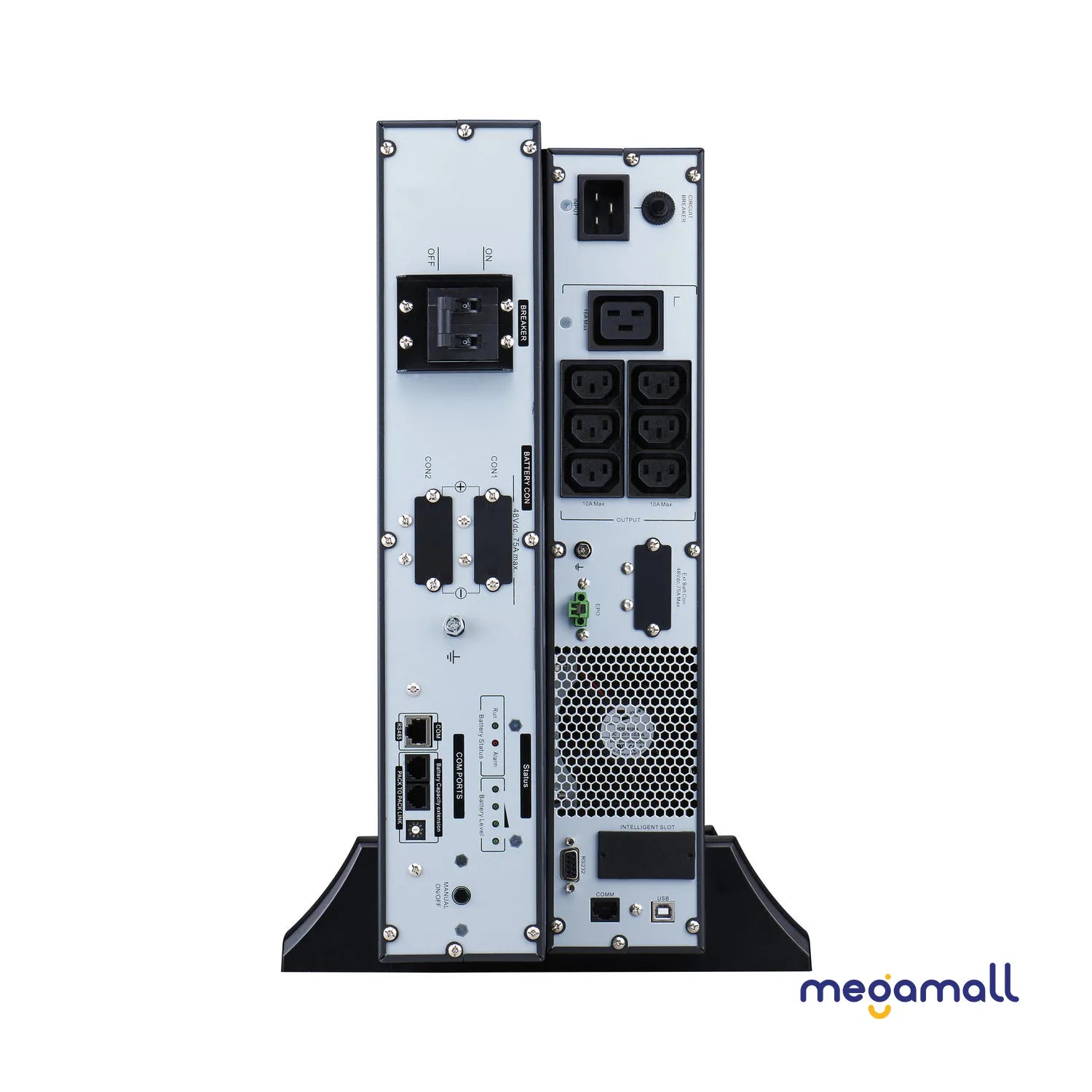

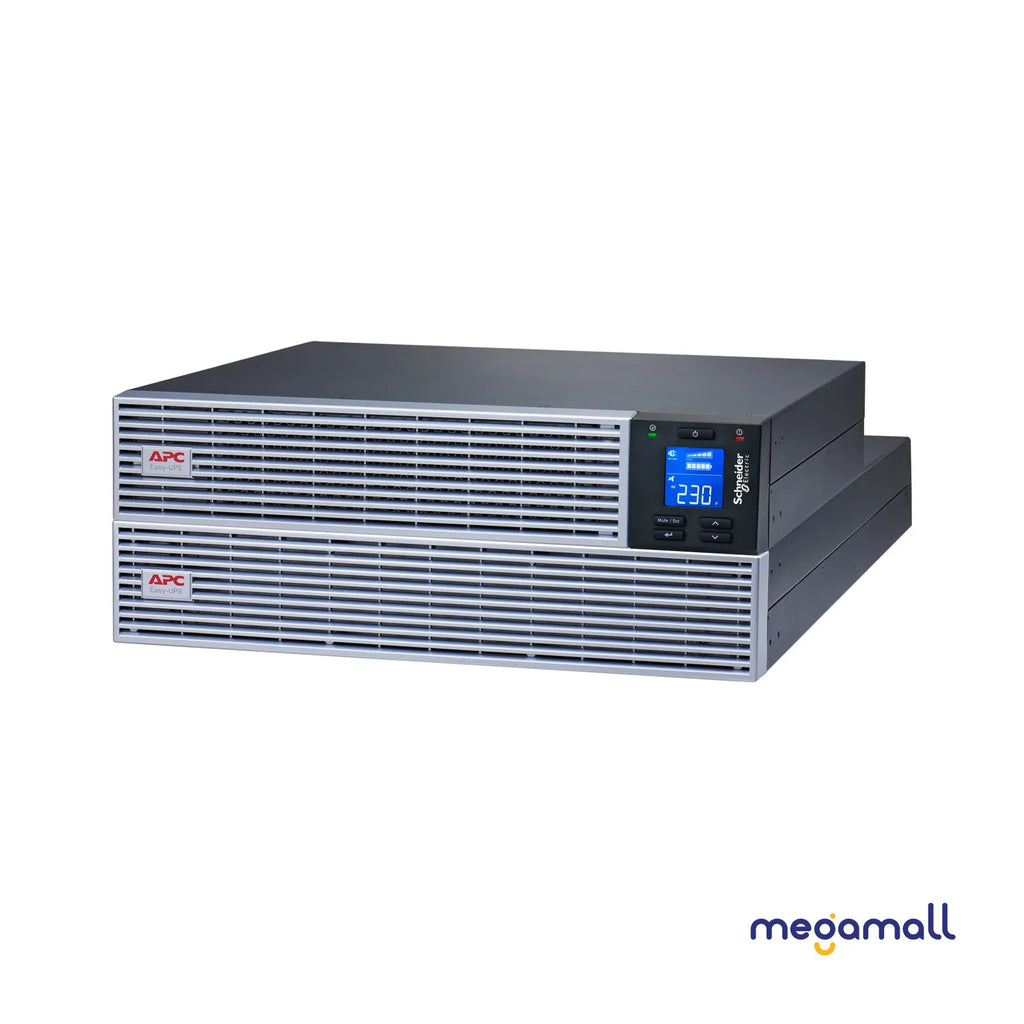

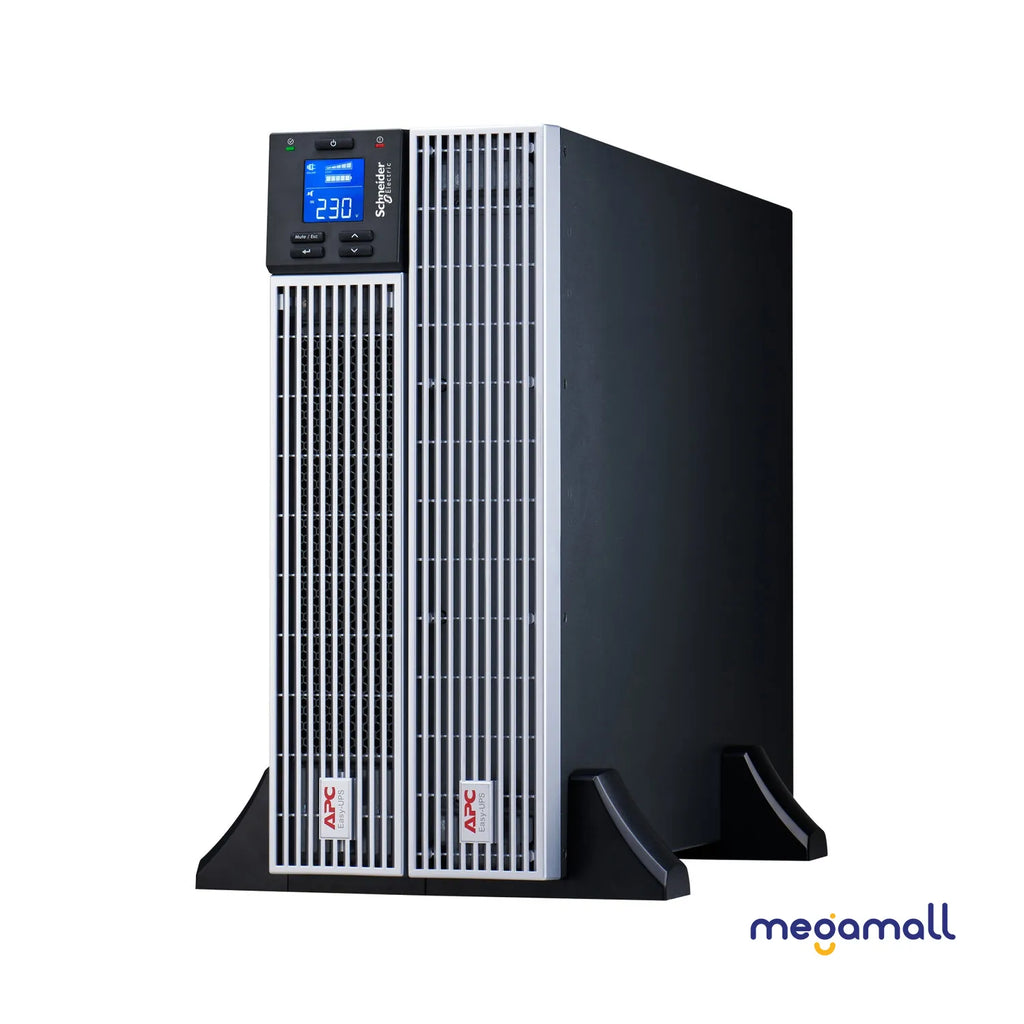

This APC Single phase Easy UPS SRV3KRILRK is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA double-conversion on-line 4U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRV comes with IEC 320 C20 input, 6x IEC 320 C13 and 1x IEC 320 C19 outlets. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.
- 3kVA/2400W double-conversion on-line pure sine wave 4U rackmount UPS
- High operating efficiency in energy-saving ECO mode
- Add up to 4 external battery packs (SRV72RLBP-9A) for extended runtime
- Easy-to-read LCD interface for detailed and accurate information on UPS status
|
Overview |
|
|
Presentation |
Double-conversion On-line UPS with Lithium-Ion battery to scalable runtime. Ideal UPS for essential power protection needs even in the most unstable power conditions. |
|
Lead time |
Usually in Stock |
|
Main |
|
|
Run time for load 2700 W Min-max: 270-2700 W |
|
|
W |
Min-max: 270-2700 W |
|
43min |
Max. Capacity Used |
|
100% |
Main Input Voltage |
|
230 V AC 1 phase |
Input voltage |
|
230 V |
Input Connection Type |
|
IEC 60320 C20 |
Input voltage limits |
|
Network frequency |
40...70 Hz auto-sensing |
|
Output voltage |
230 V AC 1 phase |
|
Output voltage |
220 V |
|
Rated power in W |
2700 W |
|
rated power in VA |
3000 VA |
|
Output connection type |
6 IEC 60320 C13 |
|
Bypass type |
Internal bypass (automatic and manual) |
|
Crest factor |
3:01 |
|
Maximum configurable power in VA |
3000 VA |
|
Maximum configurable power in W |
2700 W |
|
UPS type |
On-Line |
|
Wave type |
Sine wave |
|
Efficiency |
90 % (full load) |
|
Output frequency |
50/60 Hz +/- 3 Hz sync to mains |
|
Complementary |
|
|
Battery type |
Li-Ion (Lithium-Ion) external included |
|
Control panel |
Multifunction LCD status and control console |
|
Emergency power off |
Yes |
|
Alarm |
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
|
UPS connectivity |
Serial port |
|
Surge energy rate |
945 J |
|
Number of rack unit |
4U |
|
Colour |
Black with silver front bezel |
|
Height |
172 mm |
|
Width |
438 mm |
|
Depth |
616 mm |
|
Net weight |
38.3 kg |
|
USB compatible |
Yes |
|
Mounting position |
Horizontal and vertical |
|
Mounting mode |
Rack-mounted with included kit |
|
Provided equipment |
Basic UPS signalling RS-232 cable |
|
Number of power module filled slots |
0 |
|
Number of power module free slots |
0 |
|
Redundant |
No |
|
Range of product |
Easy UPS On-Line |
|
Product or component type |
Uninterruptible power supply (UPS) |
|
Environment |
|
|
Product certifications |
CB |
|
Ambient air temperature for operation |
0…40 °C |
|
Ambient air temperature for storage |
-20…50 °C |
|
Storage altitude |
0…15000 m |
|
IP degree of protection |
IP20 |
|
Relative humidity |
0…95 % non-condensing |
|
Storage Relative Humidity |
0…95 % non-condensing |
|
Acoustic level |
50 dBA |
|
Heat dissipation |
1024 Btu/h |
|
Operating altitude |
0...3000 m |
|
Batteries & Runtime |
|
|
Run Time |
View Runtime Graph |
|
Efficiency |
View Efficiency Graph |
|
Battery type |
Li-Ion (Lithium-Ion) |
|
Battery voltage |
48 V |
|
Extended runtime |
1 |
|
Number of battery filled slots |
0 |
|
Number of battery free slots |
0 |
|
Battery recharge time |
4.8 h |
|
Battery design life |
8…10 year(s) |
|
Battery life |
8…10 year(s) |
|
Battery charger power |
500 W |
|
Battery power in VAH |
2540 VAh runtime |
|
Packing Units |
|
|
Unit Type of Package 1 |
PCE |
|
Number of Units in Package 1 |
1 |
|
Package 1 Height |
48 cm |
|
Package 1 Width |
80 cm |
|
Package 1 Length |
60 cm |
|
Package 1 Weight |
50.62 kg |
|
Contractual warranty |
|
|
Warranty (in months) |
36 UPS|60 Battery |
