Description

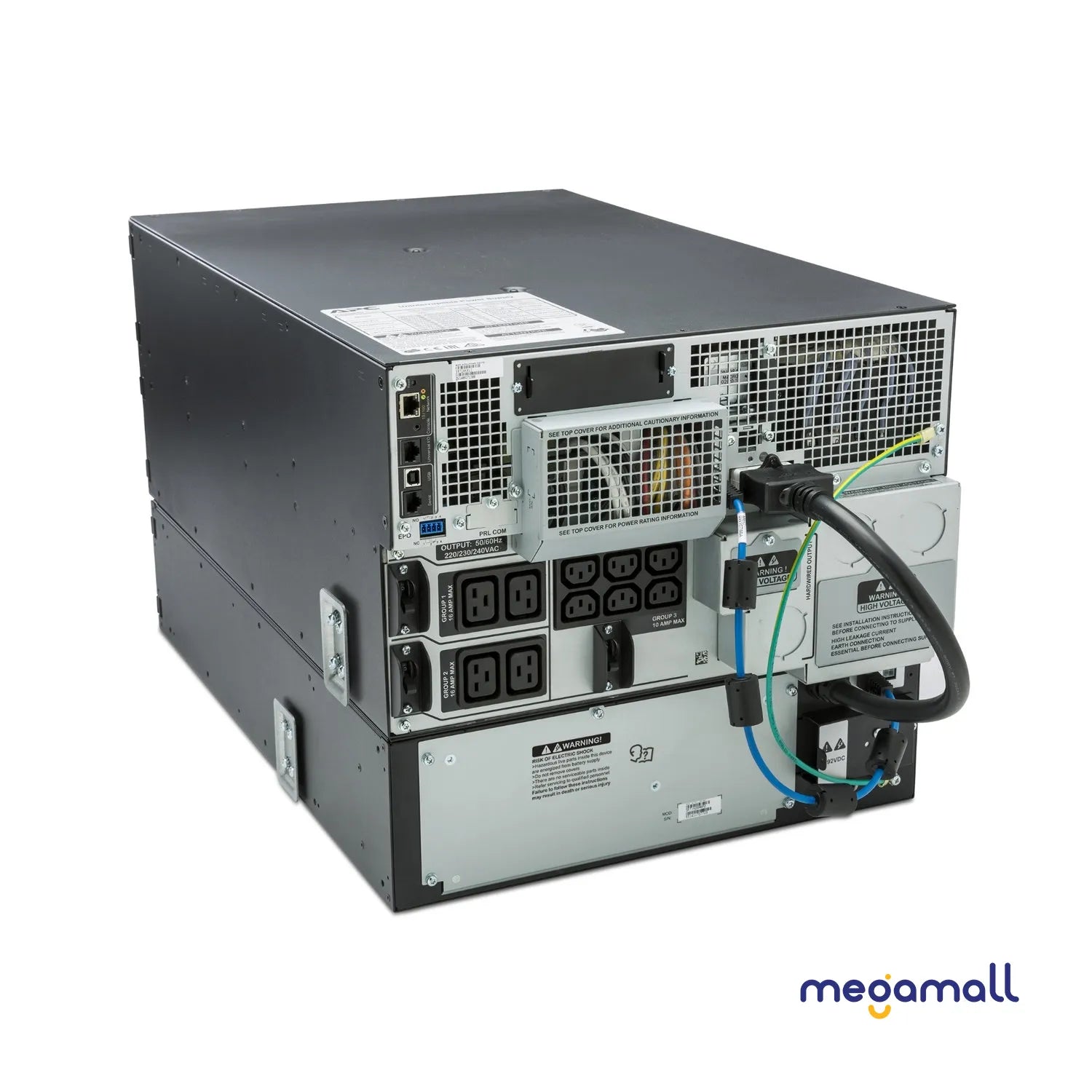

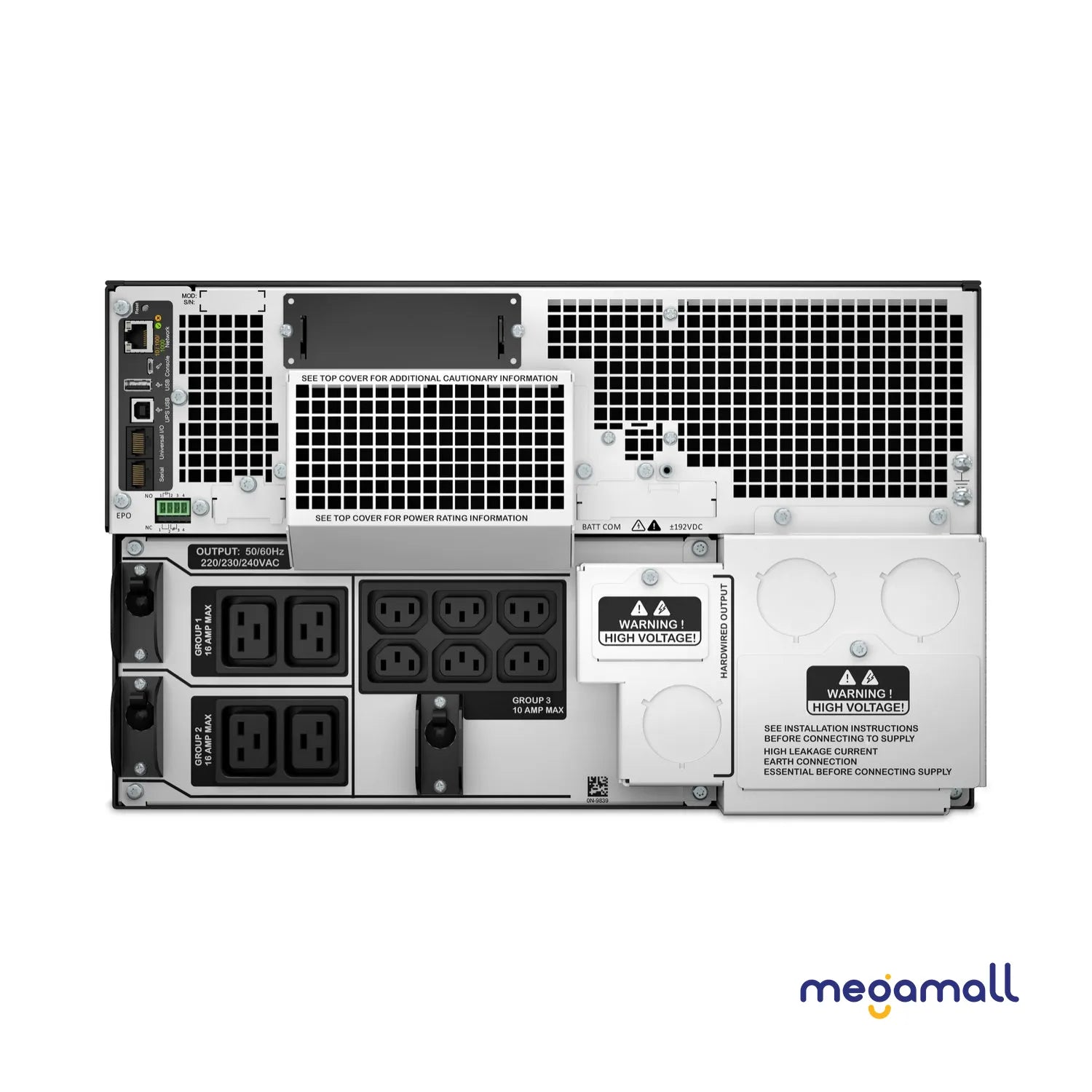

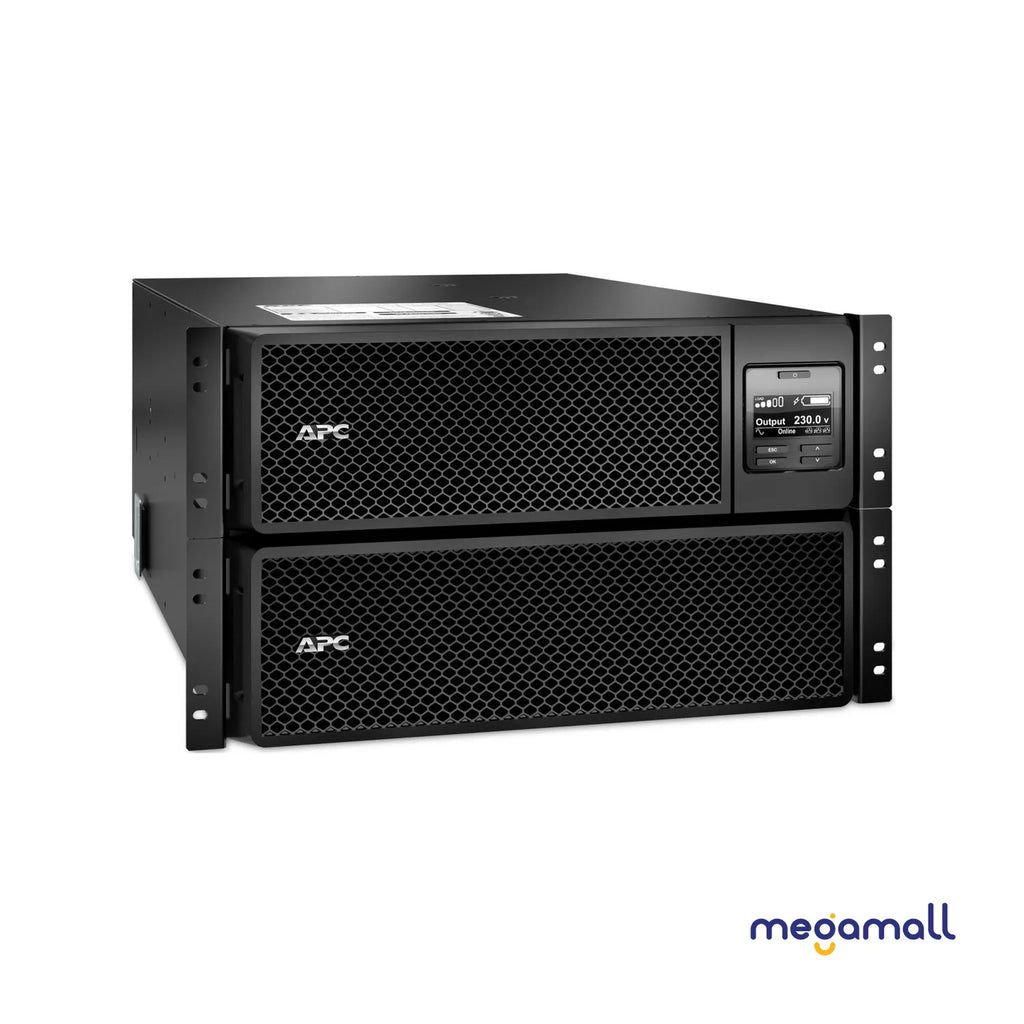

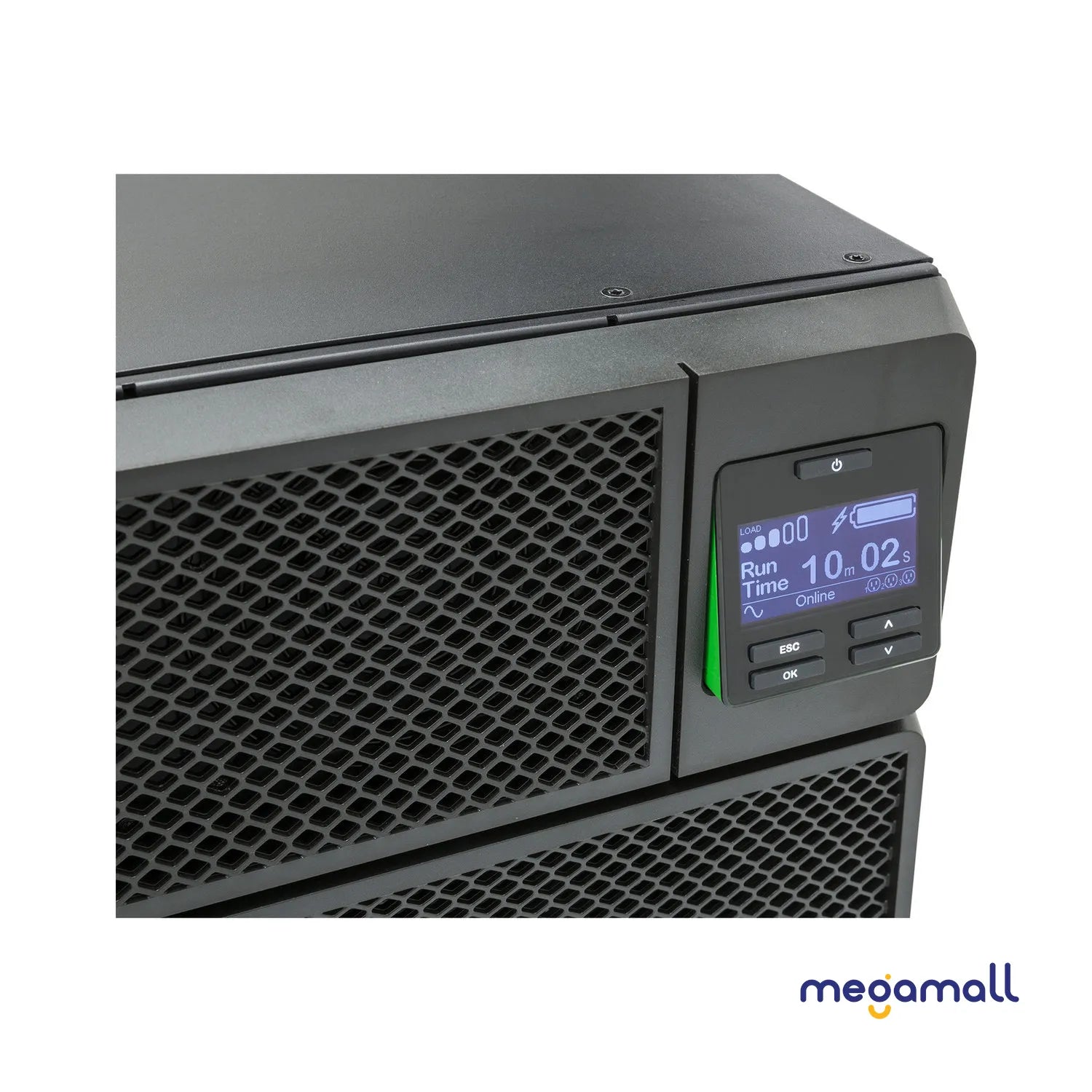

This APC Smart-UPS SRT10KRMXLI is designed for IT professionals or network administrators to maintain business uptime and continuity. This 10kVA on-line 6U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire(1P+N+E)/5-wire(3P+N+E) input, 6x IEC 320 C13 and 4x IEC 60320 C19 outlets, and 3x IEC jumper cables. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms.
- 10kVA/10kW double-conversion on-line pure sine wave 6U rackmount UPS
- Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications
- Embedded Network Management Card for network-based UPS monitoring & management
- Delivers clean power with zero transfer time for critical or sensitive devices

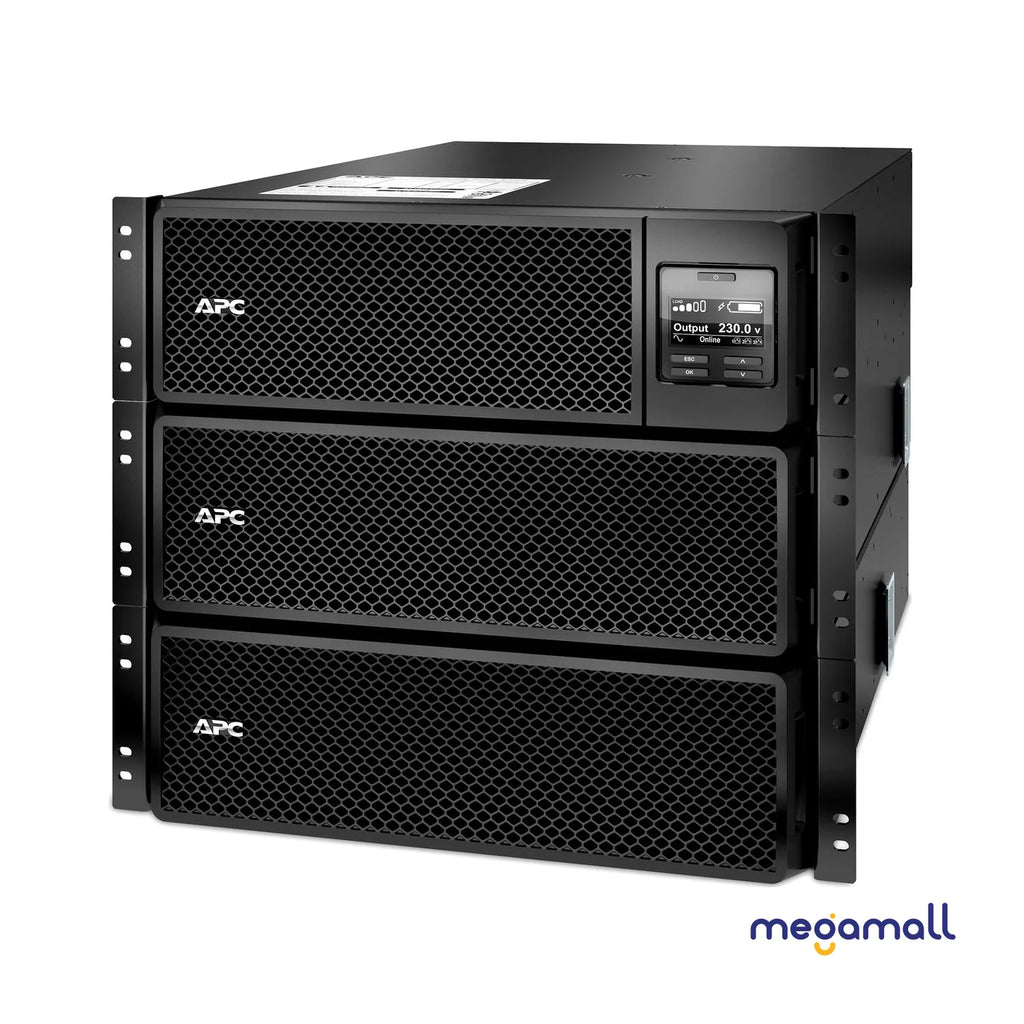

- Add up to 10 external battery packs (SRT192RMBP2) for extended runtime
|
Overview |
|
|
Presentation |
High density, double-conversion on-line power protection with scalable runtime. |
|
Main |
|
|
Run time for load 10000 W Min-max: 1000-10000 W |
3min 45s |
|
Max. Capacity Used |
100% |
|
Main Input Voltage |
230 V AC 1 phase |
|
Input voltage |
220 V |
|
Input voltage limits |
100...275 V adjustable (half load) |
|
Number of input connectors |
1 hard wire 3-wire (1P + N + E) |
|
Network frequency |
40...70 Hz auto-sensing |
|
Output voltage |
230 V 1 phase |
|
Output voltage |
220 V |
|
Rated power in W |
10000 W |
|
rated power in VA |
10000 VA |
|
Output connection type |
6 IEC 60320 C13 |
|
Output connector type |
Hard wire 3-wire (H N + E) for 1 zone(s) |
|
Bypass type |
Internal bypass (automatic and manual) |
|
Crest factor |
3:01 |
|
Harmonic distortion |
Less than 2 % |
|
Maximum configurable power in VA |
10000 VA |
|
Maximum configurable power in W |
10000 W |
|
UPS type |
On-Line |
|
Wave type |
Sine wave |
|
Output frequency |
50/60 Hz +/- 3 Hz sync to mains |
|
Complementary |
|
|
Battery type |
Lead-acid internal included |
|
Emergency power off |
Yes |
|
Free slots |
1 |
|
Preinstalled device |
Network management card 3 with environmental monitoring |
|
Alarm |
Audible and visible alarms : prioritized by severity |
|
UPS connectivity |
Serial port |
|
Surge energy rate |
480 J |
|
Number of rack unit |
6U |
|
Colour |
Black |
|
Height |
263 mm |
|
Width |
432 mm |
|
Depth |
715 mm |
|
Net weight |
111.82 kg |
|
Mounting location |
Front |
|
Mounting preference |
No preference |
|
Mounting mode |
Rack-mounted |
|
Two post mountable |
0 |
|
USB compatible |
Yes |
|
Mounting mode |
Rack-mounted with included kit |
|
Provided equipment |
CD with software |
|
Number of power module filled slots |
0 |
|
Number of power module free slots |
0 |
|
Additional specification |
High density |
|
Redundant |
No |
|
Range of product |
Smart-UPS On-Line |
|
Product or component type |
Uninterruptible power supply (UPS) |
|
Environment |
|
|
Product certifications |
CE |
|
Marking |
CE Mark |
|
Standards |
EN/IEC 62040-1:2019/A11:2021 |
|
Ambient air temperature for operation |
0…40 °C |
|
Ambient air temperature for storage |
-15…45 °C |
|
Storage altitude |
0…15240 m |
|
IP degree of protection |
IP20 |
|
Relative humidity |
0…95 % non-condensing |
|
Storage Relative Humidity |
0…95 % non-condensing |
|
Acoustic level |
55 dBA |
|
Heat dissipation |
1947 Btu/h |
|
Operating altitude |
0...10000 ft |
|
Batteries & Runtime |
|
|
Run Time |
View Runtime Graph |
|
Efficiency |
View Efficiency Graph |
|
Battery type |
Lead-acid battery |
|
Battery voltage |
+/- 192 V (split battery referenced to neutral) |
|
Extended runtime |
1 |
|
Number of battery filled slots |
0 |
|
Battery recharge time |
1.5 h |
|
Number of battery replacement quantity |
2 |
|
Battery life |
3…5 year(s) |
|
Replacement battery |
APCRBC140 |
|
Battery charger power |
876 W rated |
|
Packing Units |
|
|
Unit Type of Package 1 |
PCE |
|
Number of Units in Package 1 |
1 |
|
Package 1 Height |
46.1 cm |
|
Package 1 Width |
60 cm |
|
Package 1 Length |
100 cm |
|
Package 1 Weight |
129.727 kg |
|
Contractual warranty |
|
|
Warranty (in months) |
36 UPS|24 Battery |
