Applied Models

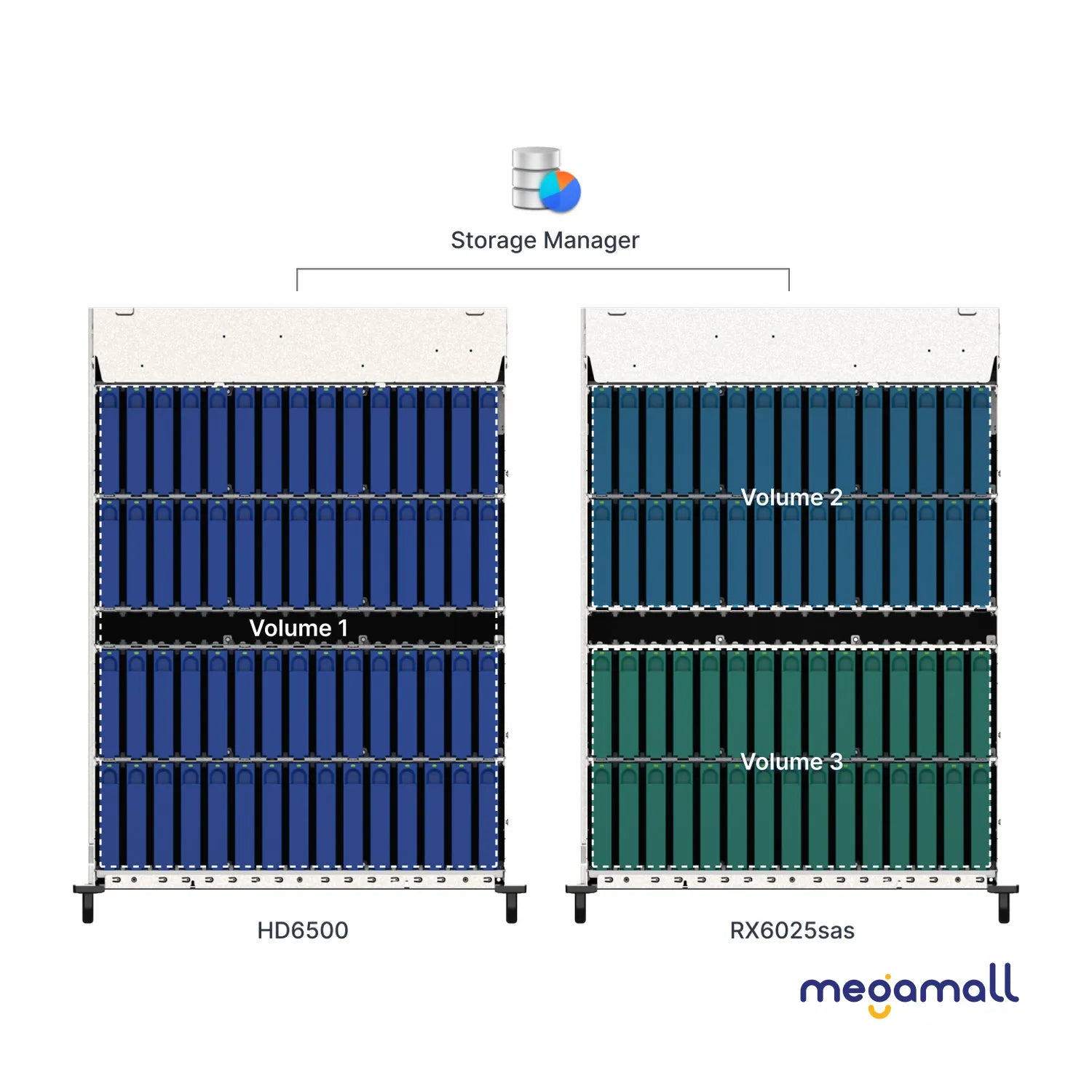

Supports creating volumes across different units

HD6500

Notes

DSM version requirement: DSM 7.2.2-72806 Update 2 or later version.
To have better performance, we recommend creating storage volumes physically located within the same NAS or Expansion Unit, rather than creating volumes across your NAS and Expansion Unit.

Storage

Drive Bays

60

Drive Type (See all supported drives)

3.5" SAS HDD
2.5" SATA SSD

Hot Swappable Drive*

✓

Notes

Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list. The use of non-validated components may limit certain functionality and result in data loss and system instability.
To install 2.5" SATA SSDs, optional 2.5" drive trays (R5) must be purchased separately. Learn more
Compatible drive type indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.

External Ports

Expansion Port

2

Appearance

Size (Height x Width x Depth)

176 mm x 438 mm x 985 mm

Size (Height x Width x Depth) (with server ears)

176 mm x 482 mm x 1020 mm

Weight

33.9 kg

Rack Installation Support*

4-post 19" rack (Synology Rail Kit - RKS-03)

Power

Power Recovery

Synchronized with the Synology RackStation

Power Supply Unit / Adapter

1300 W

AC Input Power Voltage

200V to 240V AC

Power Frequency

50/60 Hz, Single Phase

Power Consumption

811.8 W (Access)
231 W (HDD Hibernation)

British Thermal Unit

2768.24 BTU/hr (Access)
787.71 BTU/hr (HDD Hibernation)

Redundant Power Supply

✓

Notes

Power consumption is measured when it is fully loaded with Synology HAS5300-8T hard drive(s).

Temperature

Operating Temperature

0°C to 35°C (32°F to 95°F)

Storage Temperature

-20°C to 60°C (-5°F to 140°F)

Operating Humidity

8% to 80% RH

Storage Humidity

5% to 95% RH

Others

System Fan

80 mm x 80 mm x 4 pcs

Easy Replacement System Fan

✓

Noise Level*

61.7 dB(A)

Notes

Noise Level Testing Environment: Fully loaded with Synology HAS5300-8T hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%

Certification

Certification

UL
FCC
CE
BSMI
UKCA
EAC
VCCI
RCM
KC

Warranty

Warranty

5 Years

Notes

The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)

Environment

Environment

RoHS Compliant

Packaging Content

Packaging Content

Main Unit X 1
Rail kit RKS-03 X 1
Accessory Pack X 1
AC Power Cord X 2
Expansion Cable: Mini-SAS HD X 2
Quick Installation Guide X 1

Optional Accessories

Optional Accessories

Enterprise Series 3.5" SAS HDD: HAS5300 Series
Enterprise Series 2.5" SATA SSD: SAT5200 Series

Notes

To install 2.5" SATA SSDs, optional 2.5" drive trays (R5) must be purchased separately. Learn more
