Description
Easily double or triple the storage capacity of your Synology DiskStation.
|
Applied Models |
|
|

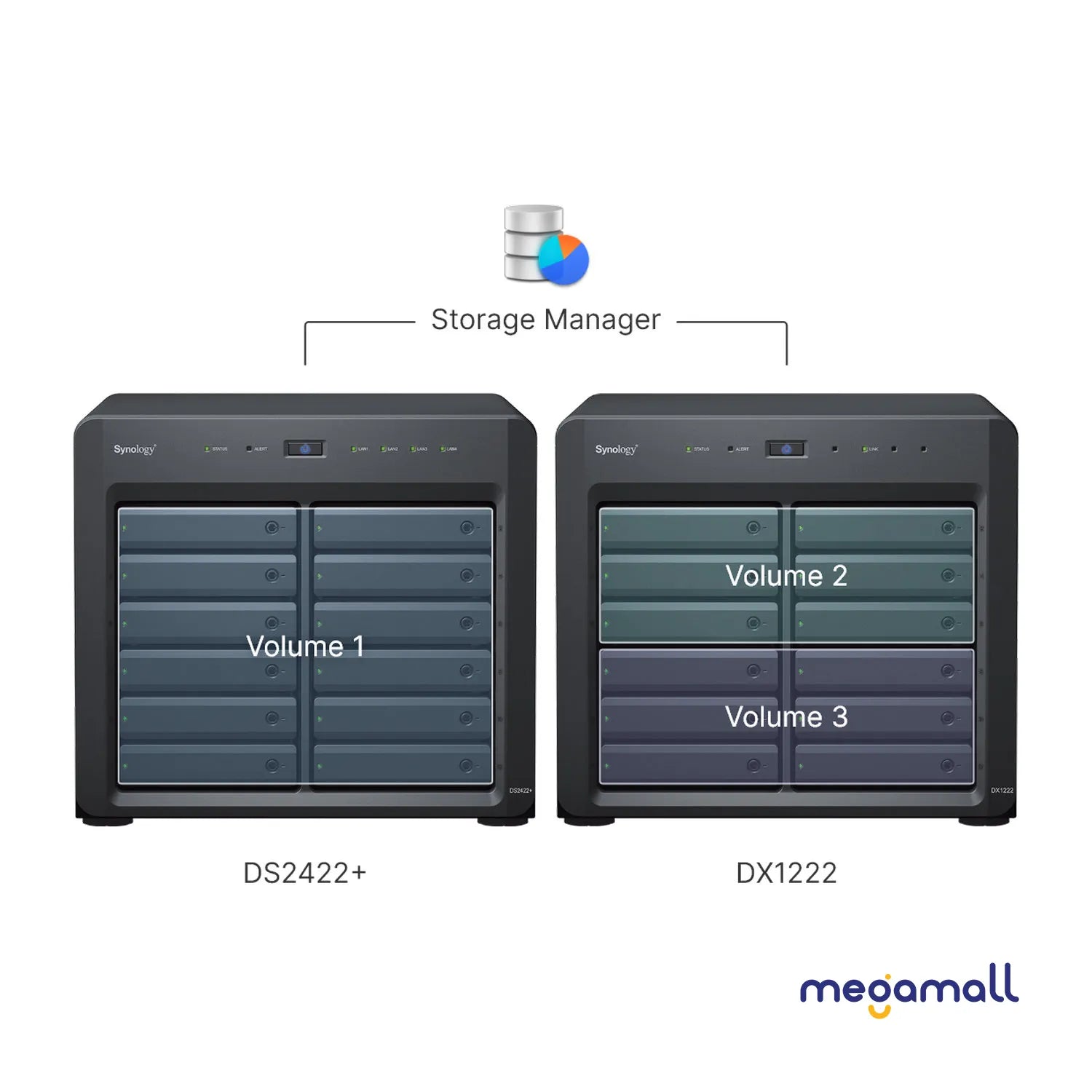

Supports creating volumes across different units |
22 series:DS3622xs+, DS2422+ |
|
Notes |
To have better performance, we recommend creating storage volumes physically located within the same NAS or Expansion Unit, rather than creating volumes across your NAS and Expansion Unit. |
|
Storage |
|
|
Drive Bays |
12 |
|
Drive Type (See all supported drives) |
3.5" SATA HDD |
|
Hot Swappable Drive* |
✓ |
|
RAID Management through Synology DSM |
✓ |
|
Notes |
Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list. The use of non-validated components may limit certain functionality and result in data loss and system instability. |
|
External Ports |
|
|
Expansion Port |
1 |
|
Appearance |
|
|
Size (Height x Width x Depth) |
270 mm x 300 mm x 340 mm |
|
Weight |
9.02 kg |
|
Power |
|
|
Power Recovery |
Synchronized with the Synology DiskStation |
|
Power Supply Unit / Adapter |
550 W |
|
AC Input Power Voltage |
100V to 240V AC |
|
Power Frequency |
50/60 Hz, Single Phase |
|
Power Consumption |
57.71 W (Access) |
|
British Thermal Unit |
194.96 BTU/hr (Access) |
|
Notes |
Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s). |
|
Temperature |
|
|
Operating Temperature |
0°C to 40°C (32°F to 104°F) |
|
Storage Temperature |
-20°C to 60°C (-5°F to 140°F) |
|
Operating Humidity |
8% to 80% RH |
|
Storage Humidity |
5% to 95% RH |
|
Others |
|
|
System Fan |
120 mm x 120 mm x 2 pcs |
|
Easy Replacement System Fan |
✓ |
|
Noise Level* |
24.6 dB(A) |
|
Notes |
Noise Level Testing Environment: Fully loaded with Seagate ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology expansion unit at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%. |
|
Certification |
|
|
Certification |
UL |
|
Warranty |
|
|
Warranty |
5 Years |
|
Notes |
The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more) |
|
Environment |
|
|
Environment |
RoHS Compliant |
|
Packaging Content |
|
|
Packaging Content |
Main Unit X 1 |
|
Optional Accessories |
|
|
Optional Accessories |
Enterprise Series 3.5" SATA HDD: HAT5300 Series |
